Commercial Air Filters

95% & 65%

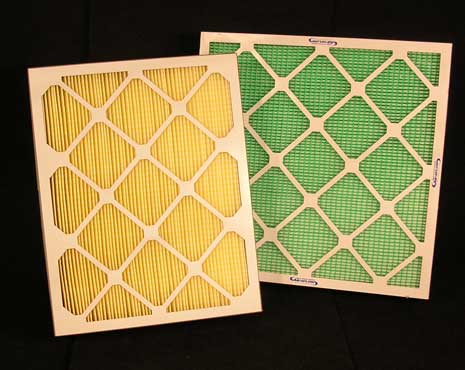

Beverage Board Mini-Pleated
Air Filters

Extended surface
self-supported mini-pleated filter

FEATURES...
Available in 65%, 85%, 95% and 98% efficiencies as per ASHRAE 51.2.

Holt Filters, Inc. has a full line of pleated air filters to serve any application requiring medium ASHRAE efficiency. (Standard grade, Industrial or Commercial grade) Our MINI PLEAT extended surface self-supported mini pleat filters are designed for use in air filtration systems and equipment where medium to high efficiency filtration is required. Available in a wide variety of standard sizes and nominal 2” & 4” depths, our MINI PLEAT provides optimal performance in variable air volume systems.

The standard offering is rated by Underwriters Laboratories as Class II, per UL Standard 900.

CONSTRUCTION
The injection molded polypropylene frame and thermally bonded polypropylene media separators provide strength and rigidity to this product.

The media pack, comprised of non-shedding, gradient density polypropylene fibers, is bonded to the inside perimeter of the enclosure frame by a moisture resistant adhesive, providing a continuous and positive seal.

The all synthetic composition of frame, media pack and separators are not adversely affected by moisture and do not support the growth of microbial organisms such as bacteria, mold and fungi, etc.

APPLICATIONS...
Holt Filters Inc. full line of pleated air filters is used in a broad range of installations, from pre-filters for higher efficiency air filters to primary filters for computer room units. Our filters offer longer life and higher dust holding capacities, and have been successfully used in upgrading from lower efficiency filters.

ABOUT FILTERS AND MERV RATINGS MERV RATINGS
(Minimum Efficiency Reporting Value) are used by the HVAC (Heating, Ventilating and Air Conditioning) industry to describe a filter's ability to remove particulates from the air. A higher MERV rating means better filtration and greater performance.

FEATURES & BENEFITS
Rigid construction, extended surface, low initial pressure drop measured in inches w.g., long service life, savings in energy costs and shipping costs are features and benefits which make our MINI PLEAT an excellent option for meeting the requirements of medium to high efficiency filtration.

Mini-Pleated Filter Specs1

Mini-Pleated Filter Specs2

95% & 65% Beverage Board
Mini-Pleated Air Filters
