ASHRAE Cell Air Filters:

Box »

Single Header »

Double Header »

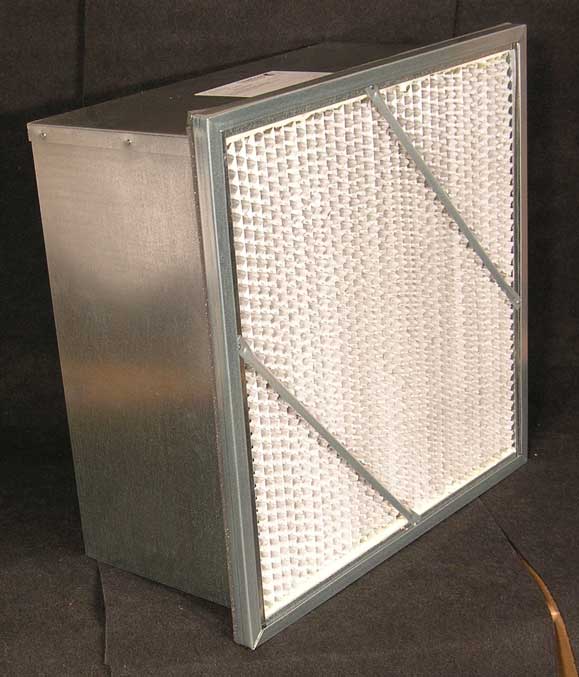

The ASHRAE Cell is an extended surface, high efficiency filter constructed in a rigid frame. The filter utilizes a continuous sheet of wet-laid microfiber media that is deep pleated. This media can operate in applications that have 100% humidity. Hemmed edge aluminum corrugated separators are placed between each pleat to
stabilize the pack and ensure proper air flow through the filter. The media pack is sealed to all four sides of the frame. The result is a high integrity filter that delivers high efficiency and consistent performance. The ASHRAE Cell is available in a MERV 9, MERV 11, MERV 13 and MERV 14 per ASHRAE standard
52.2-2007 in both 6" and 12" depths. Single or double header versions are also available.

The ASHRAE Cell can be used in diverse conditions including 100% humidity and turbulent or variable air volume (VAV)
systems. With such durability, this filter usually requires fewer changeouts than pocket or rigid cell filters. The ASHRAE Cell is an upgrade from lofted high efficiency fiberglass media filters and provides more media per filter than the traditional pocket style or rigid cell filter. The construction and media of this filter eliminates fiber shedding and dust particle unloading.

The ASHRAE Cell can be used in place of pocket filters when conditions call for a rigid filter or where high humidity warrants its use. These filters can be used in a variety of commercial and industrial applications including hospitals, hightech manufacturing and food processing. This filter can also be used in place of other rigid cell filters when high dust holding capacity is desired.


  • Moisture resistant media for high humidity applications
  • Designed for use in Variable Air Volume systems
  • Replaces traditional pocket-style filters
  • Rigid format prevents unloading of dust due to media oscillation
  • Galvanized steel frame provides exceptional strength
  • UL900 Class 1
    Galvanized metal frame, (header) and internal pocket support retainers, (jchannels) provide strength and rigidity to this product.

(Minimum Efficiency Reporting Value) are used by the HVAC (Heating, Ventilating and Air Conditioning) industry to describe a filter's ability to remove particulates from the air. A higher MERV rating means better filtration and greater performance.
