Phoenix
Sleeves & Links

FEATURES

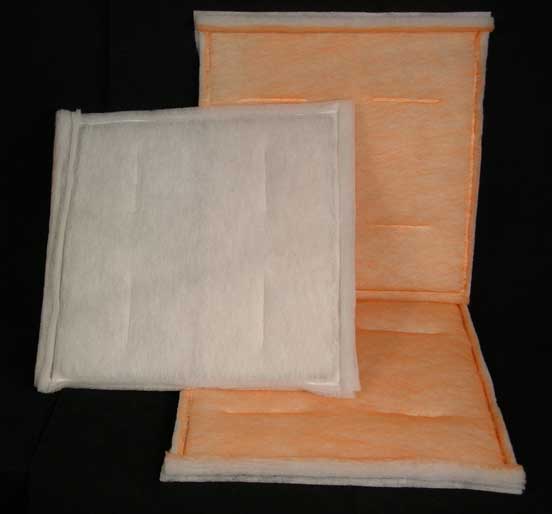

The Phoenix Series Sleeves and Links offer a variety of styles, multiple filtration media layers and performance levels for most applications.

From an air entering filter for paint booths to upgrading a lower efficient filter installation, the Poly-Ring Panel Filter is perfect for many filtration applications. The Glasfloss Phoenix Series Poly-Rings are offered in 1/2": PR-5; 1": PR-10 and 2": PR-20 nominal thickness for a broad range of dust loading applications.

  • Available in Rings, Sleeves and Links
  • 100% Non-woven Polyester Media
  • Multiple Layers of Progressively Dense Media Fibers
  • Internal Wire Frame Structure
  • Self-sealing Media Gasket

CONSTRUCTION
The Phoenix Series PR-5, PR-10 and PR-20 filters are constructed with multiple layers of progressively dense, 100% non-woven polyester media. The media layers are thermally sealed around an internal, wire frame. A center wire support strut prevents the filter media from ballooning during operation. The progressively dense orientation of each media layer enables the small micron size particles to depth load within the filter. The last layer of media incorporates a non-migratory, in-line tackifier that is bonded to the media fibers allowing maximum use of the filter's upstream layers. The in-line tackifier will not shed and contaminate equipment downstream of the filter. The Glasfloss Phoenix Series shall incorporate sufficient media overlap around the filter's perimeter to prevent contaminants from bypassing around the holding frame.

APPLICATIONS
The Phoenix Series Sleeves and Links can be used in a variety of HVAC applications and are commonly used as the air intake filter for spray paint booths. The Phoenix Series filters are manufactured with components impervious to moisture, which makes them excellent for rooftop units and HVAC applications plagued with high humidity. The Phoenix Series filters are durable; incorporating a heavy-duty internal framework, they are less likely to suffer damage during transit. Whether used as the primary or the pre-filter to extend the life of more expensive final filters, the Phoenix Series offers value and performance not found in other filters.

ABOUT FILTERS AND MERV RATINGS MERV RATINGS
(Minimum Efficiency Reporting Value) are used by the HVAC (Heating, Ventilating and Air Conditioning) industry to describe a filter's ability to remove particulates from the air. A higher MERV rating means better filtration and greater performance.

SPECIFICATIONS
The Phoenix Series Sleeves and Links shall be constructed utilizing layers of 100% non-woven polyester media. For optimum performance, the air leaving side of the Phoenix Series products shall be treated with a non-toxic, non-migratory adhesive. An internal wire frame shall be thermally sealed within the filter to maintain integrity. A thermal seal shall extend around the perimeter edge of the internal wire frame and on both sides of the center wire support strut, ensuring the permanent bond of all media plies. There shall be sufficient media overlap to ensure a positive seal between the filter and the holding frame, eliminating the possibility of air bypass and the need for supplemental gasketing.

Click Here for more info

Phoenix Sleeves & Links
